Manual Chain Pipe Cutter — Spark-Free Cold Cutting, 32–915 mm
Cuts galvanized, carbon steel and stainless pipe cold — no flame, no sparks, and a square weld-ready edge. Thirteen sizes cover 32 to 915 mm outside diameter.

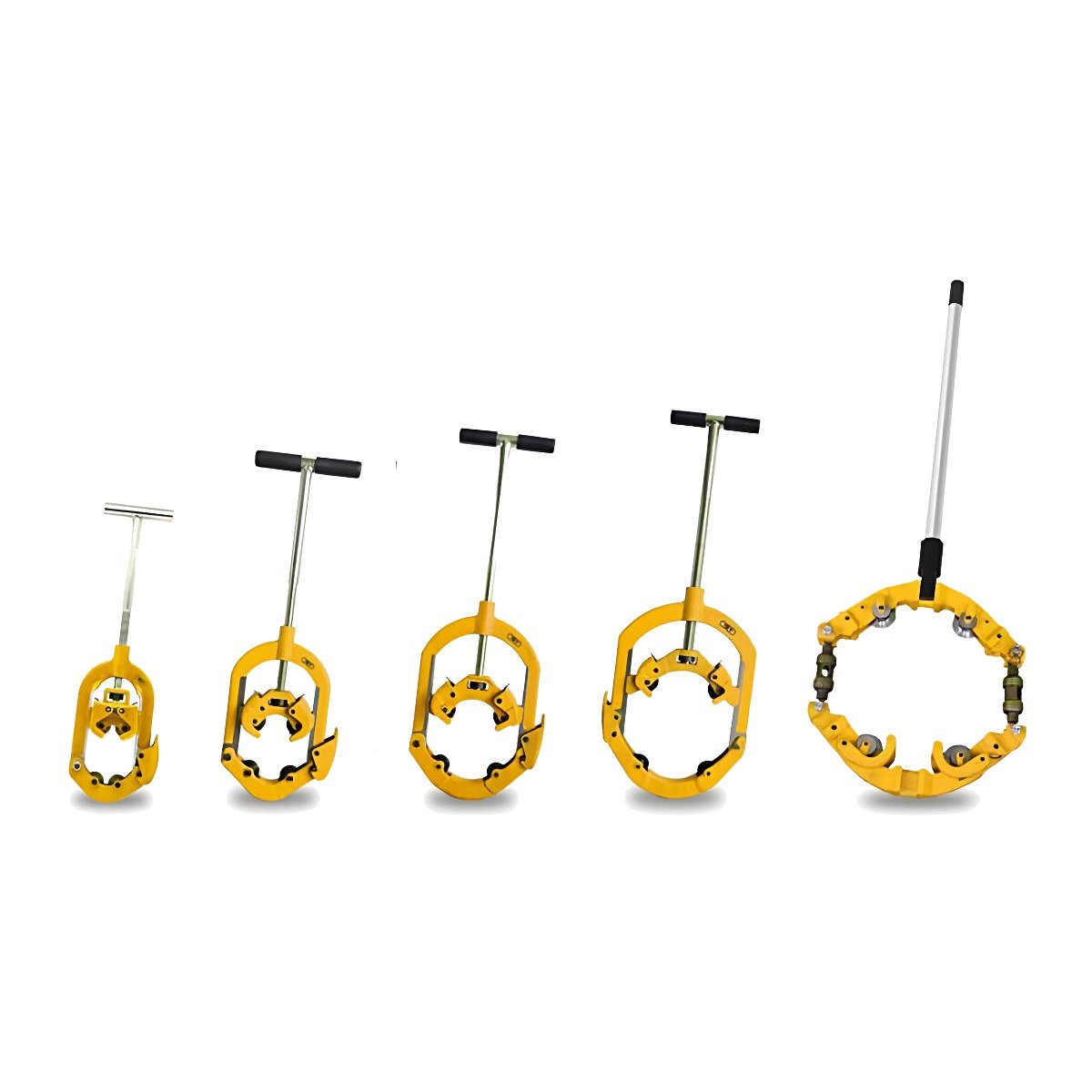

A manual chain-type pipe cutter that cuts steel pipe cold — no flame, no sparks, no heat-affected edge. The chain wraps the pipe, the cutter wheels bite in, and a short back-and-forth swing of the handle shears a clean square cut. It is the tool of choice on live sites where hot work is not allowed: fire-protection lines, refineries, gas and chemical plants, ships and tank farms.
13 sizes
from US$ 168
32 – 915 mm
pipe outside diameter
Zero sparks
no hot-work permit
90° swing
fits tight spaces
Choose your pipe size
Tap a model to see the tool, its cutting capacity and the price. All prices are per unit in US dollars, ex-works — sea or air freight to your port is quoted separately.
Cutting is purely mechanical, so the tool can work on lines that still hold residue, gas or fuel — exactly where a grinder or torch is forbidden.
✓
A square, weld-ready edge
The wheels shear the wall instead of burning it. There is no slag, no heat-affected zone and no discolouring, so the pipe is ready to bevel and weld straight away.
✓
Only 90° of swing needed
The ratchet handle needs less than a quarter turn to work, so the cutter fits in trenches, risers, ceiling voids and between close-packed lines where a saw will never go.
✓
Hardened alloy cutter wheels
Four-wheel sets are standard and replaceable. Optional wheels are available for cast iron and heavy-wall steel.
✓
One tool, many pipe materials
Galvanized pipe, black carbon steel and stainless steel as standard. Cast iron and thick-wall steel with the matching optional wheel set.
✓
Built for daily site work
Forged frame, replaceable chain and simple field maintenance — no motor, no power supply, nothing to fail on site.
All models and prices
Model
Cutting range (OD)
Nominal size
Max. wall thickness
Price (USD)

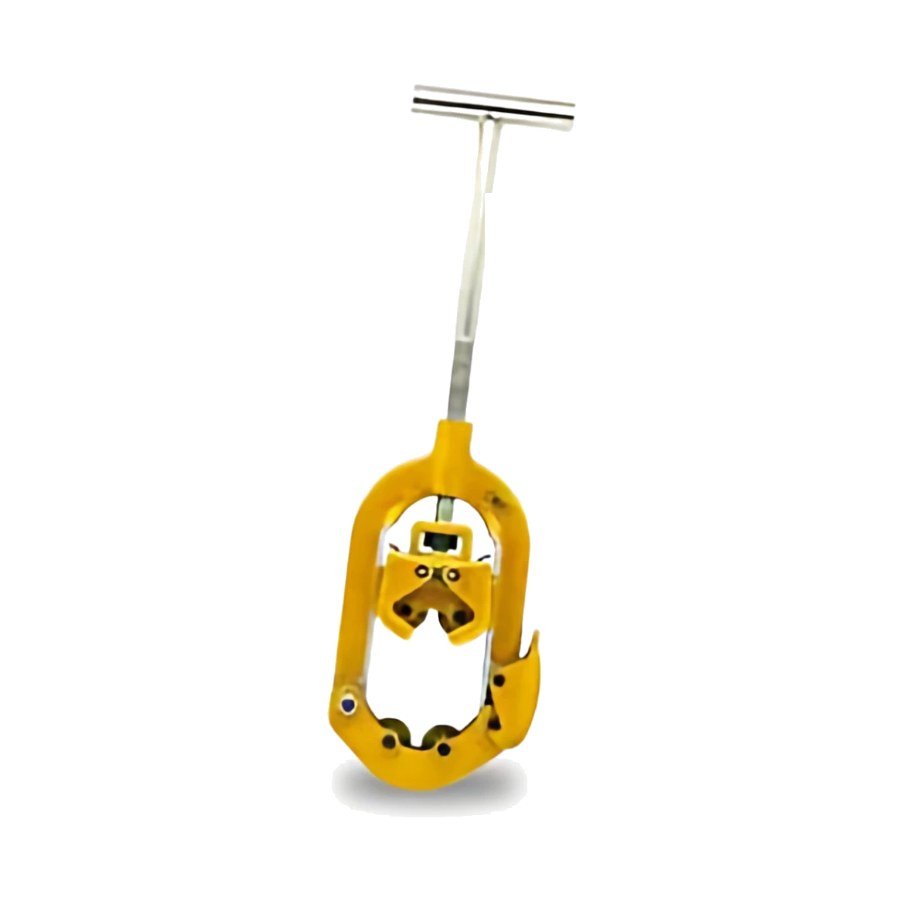

H2S
32 – 76 mm
—
—
US$ 168

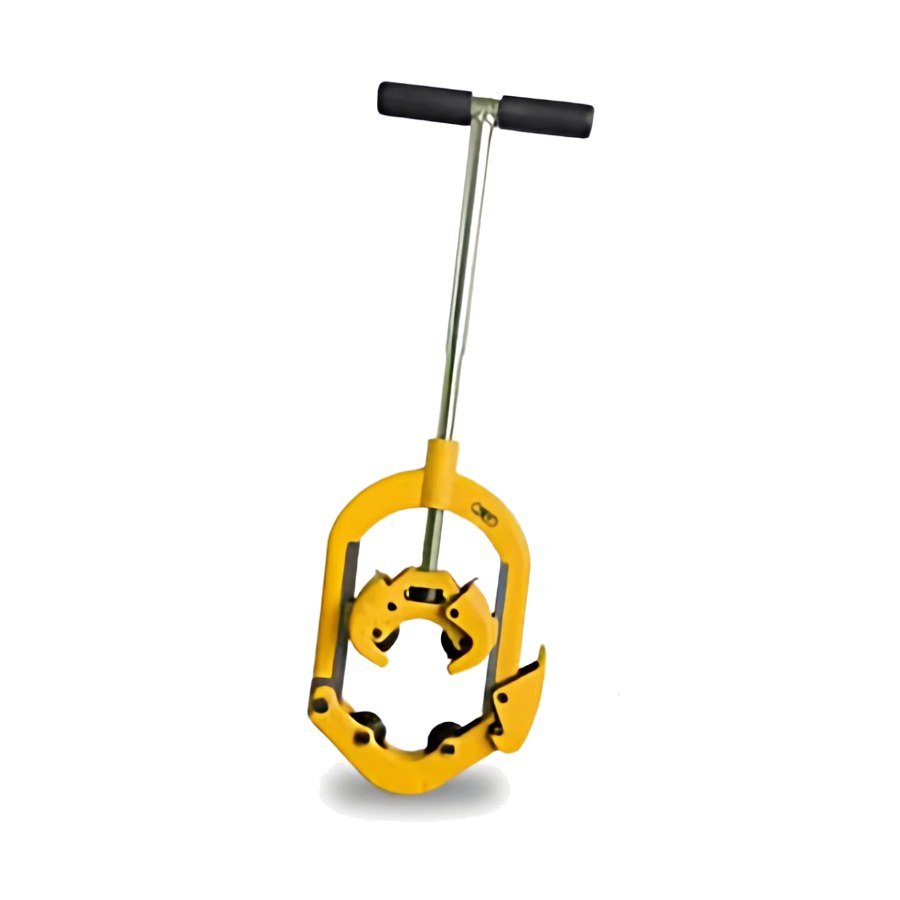

H4S
60 – 114 mm
—
—
US$ 195

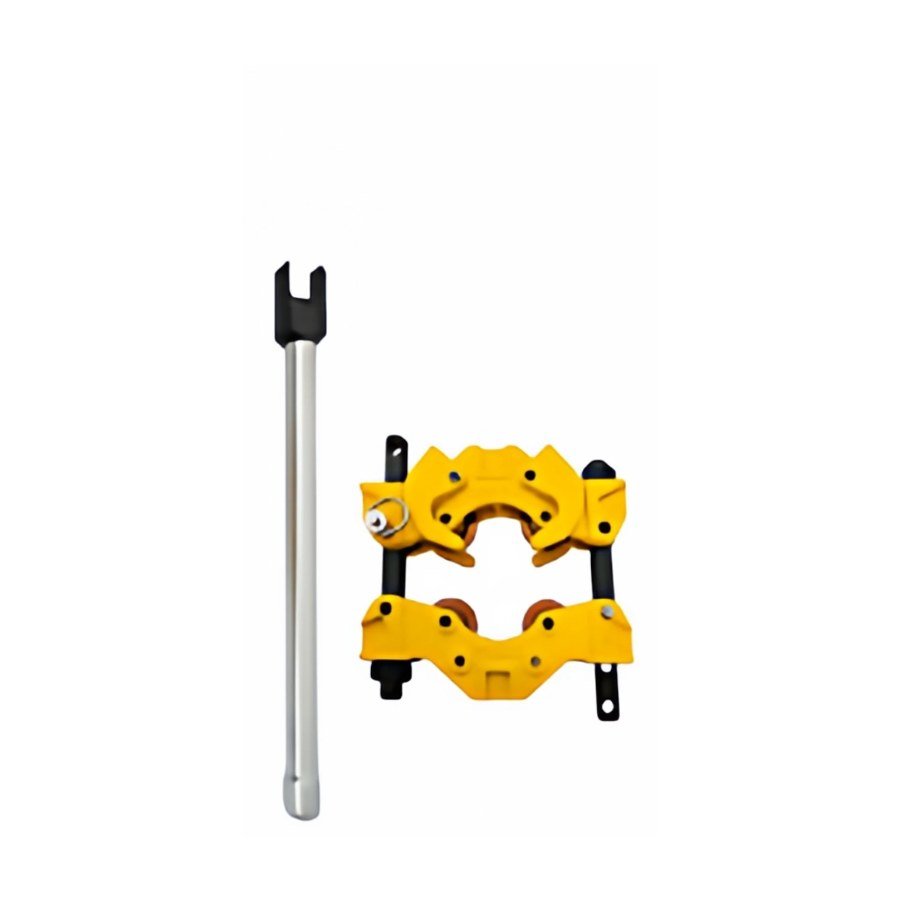

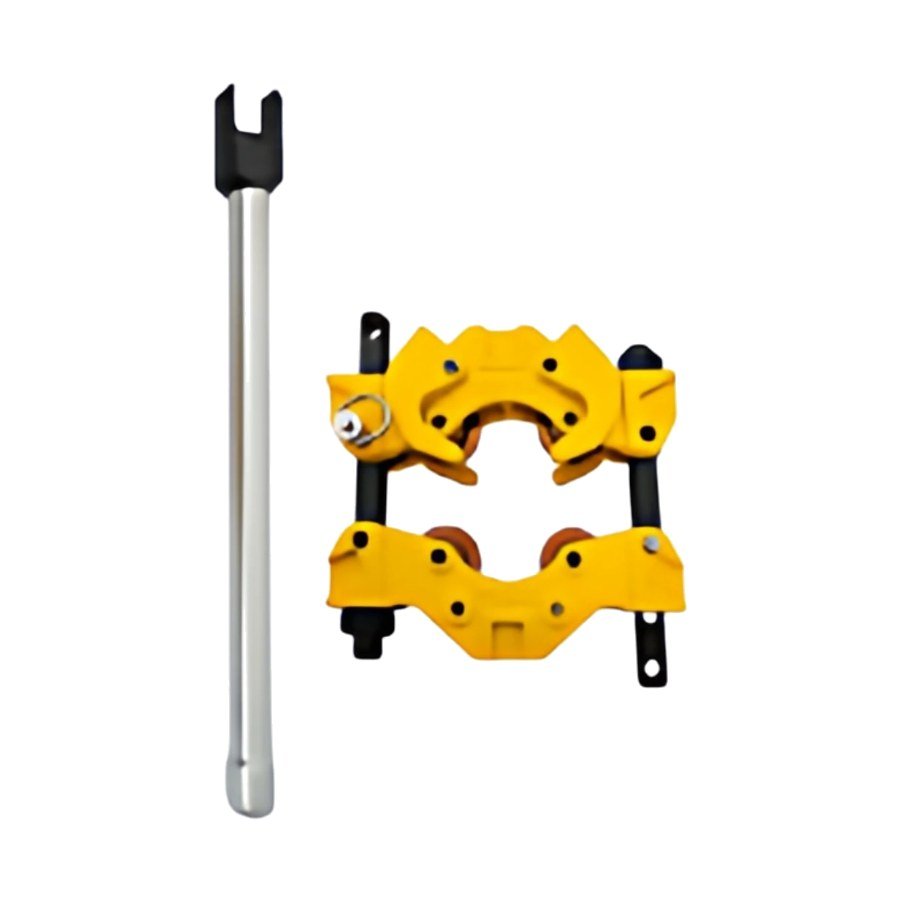

RH4S
60 – 125 mm
2″ – 4″
6.4 mm
US$ 1,062

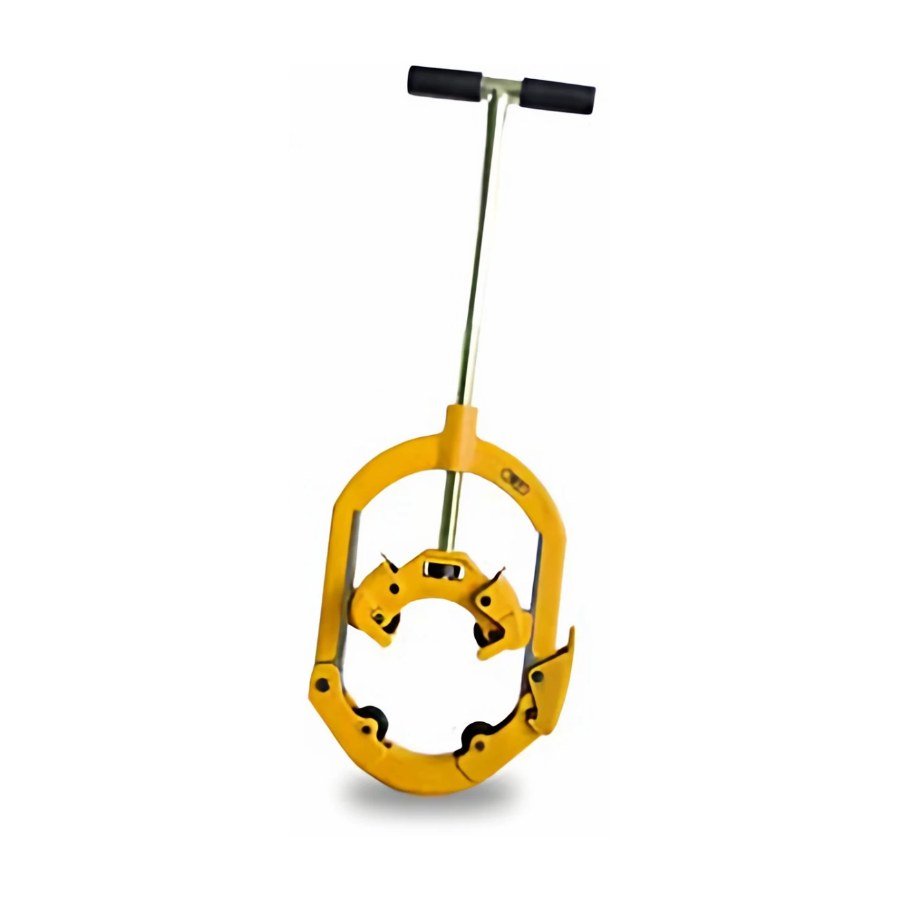

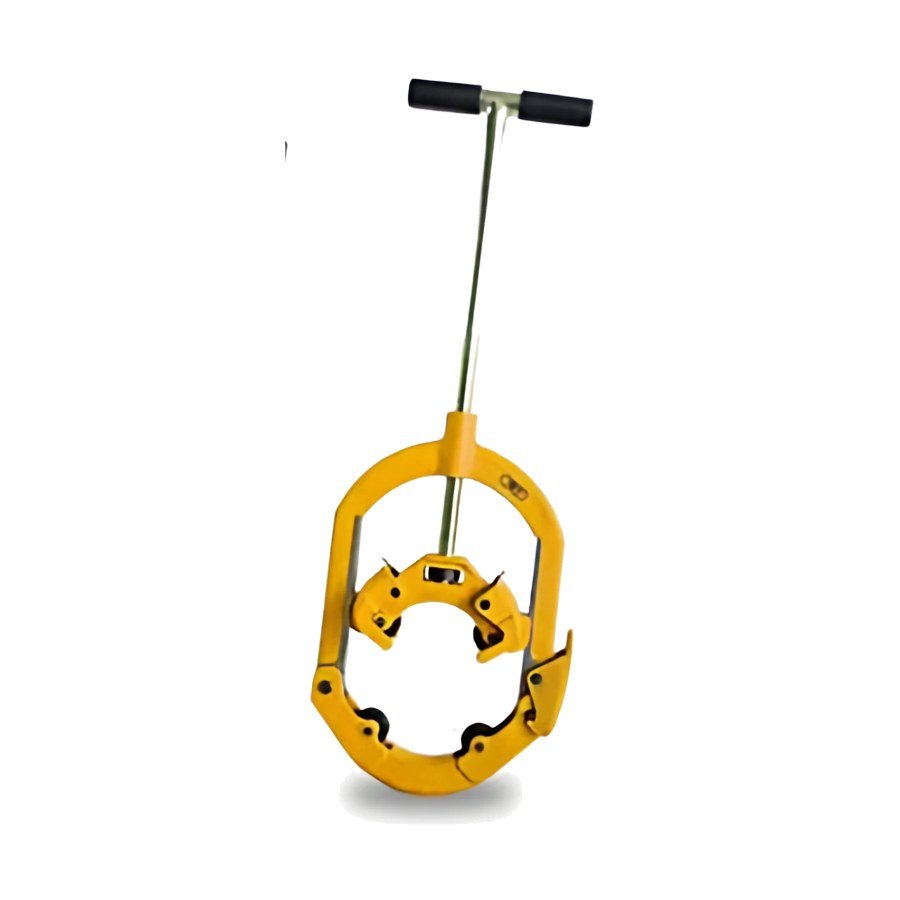

H6S
114 – 168 mm
—
—
US$ 274

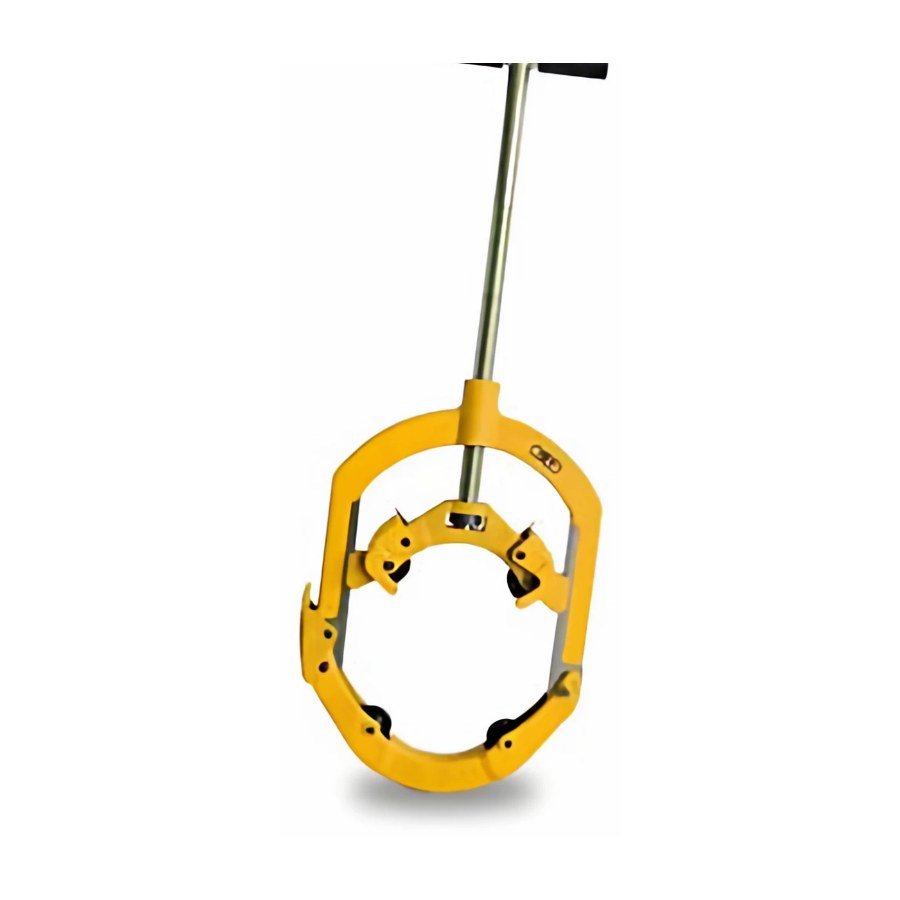

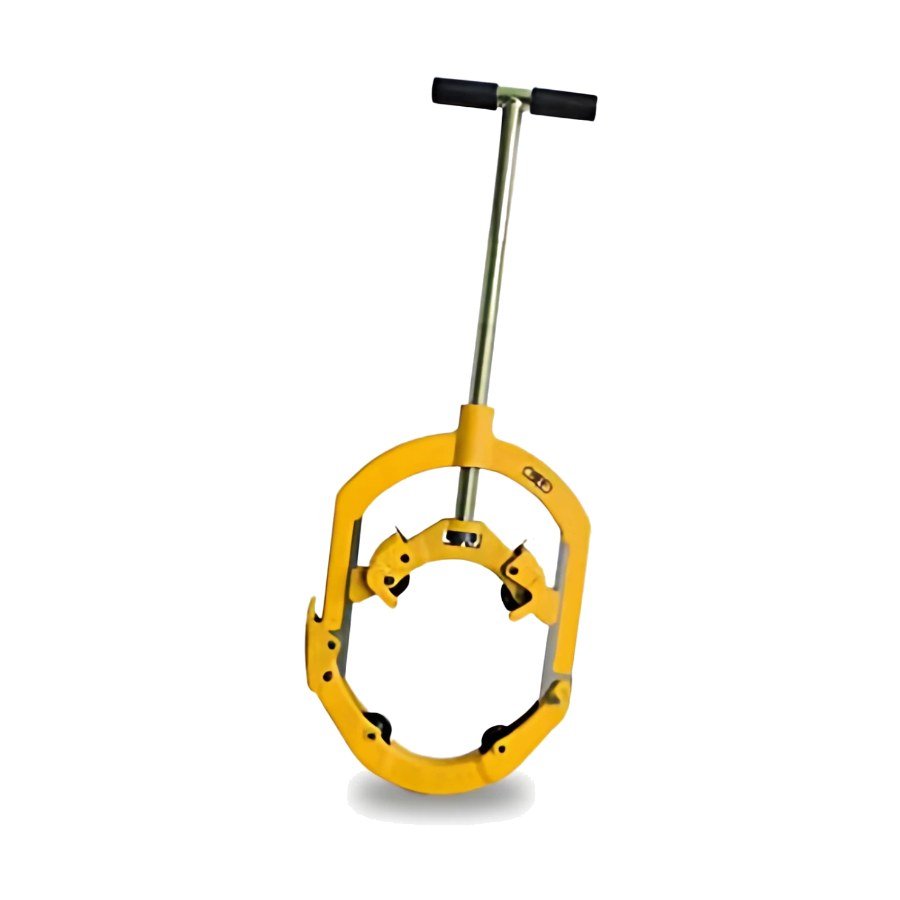

H8S
165 – 220 mm
—
—
US$ 373

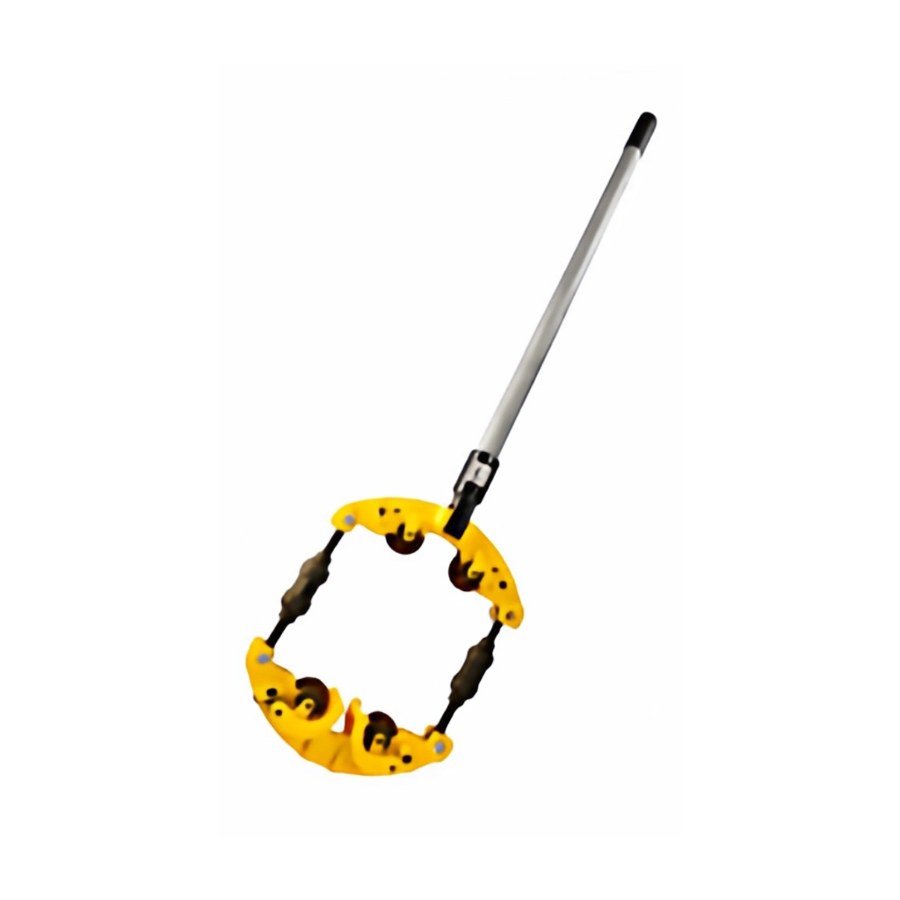

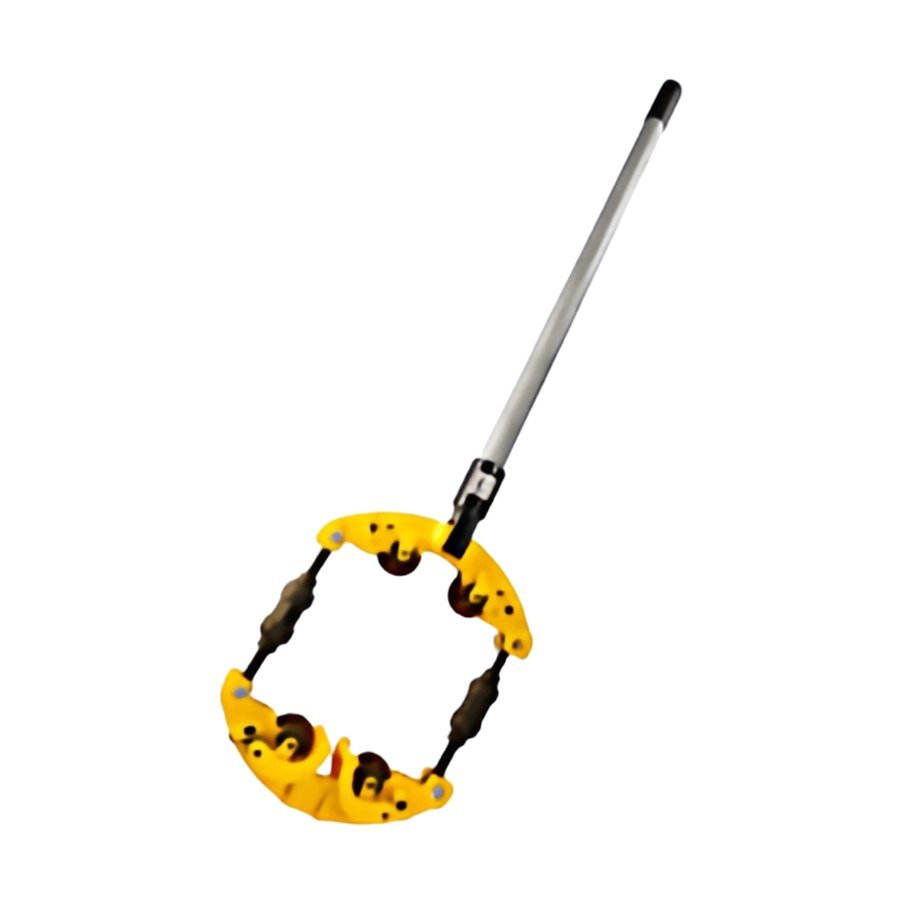

H10S
168 – 273 mm
6″ – 10″
15 mm
US$ 1,397

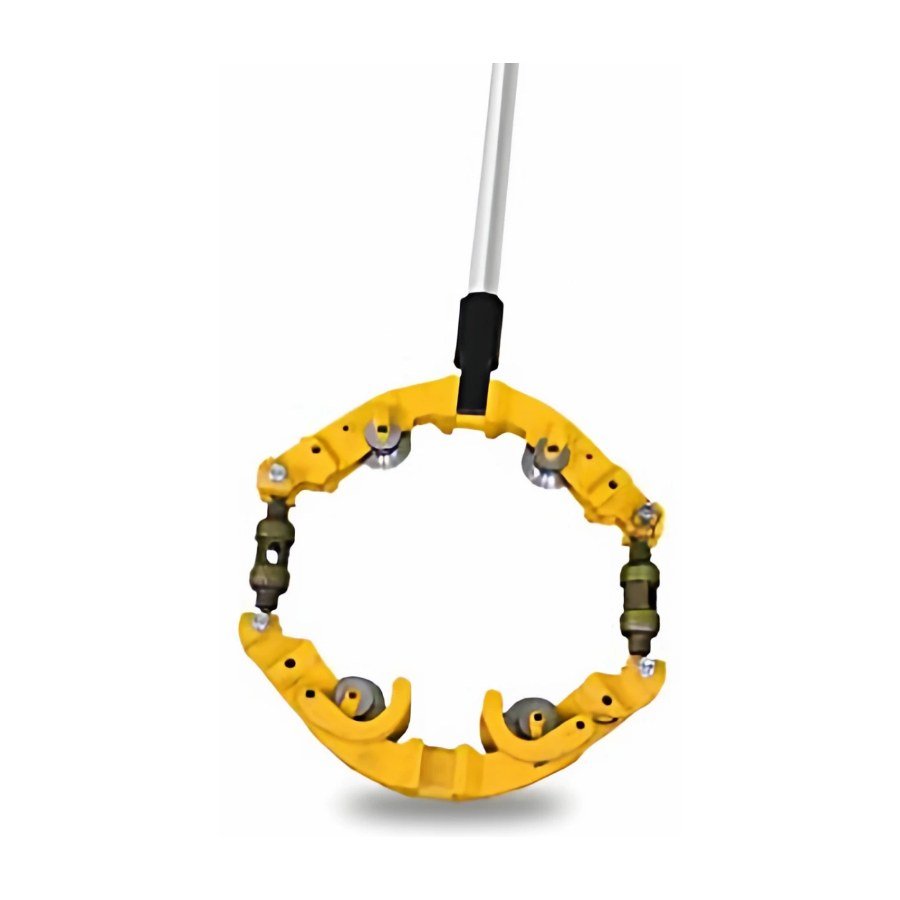

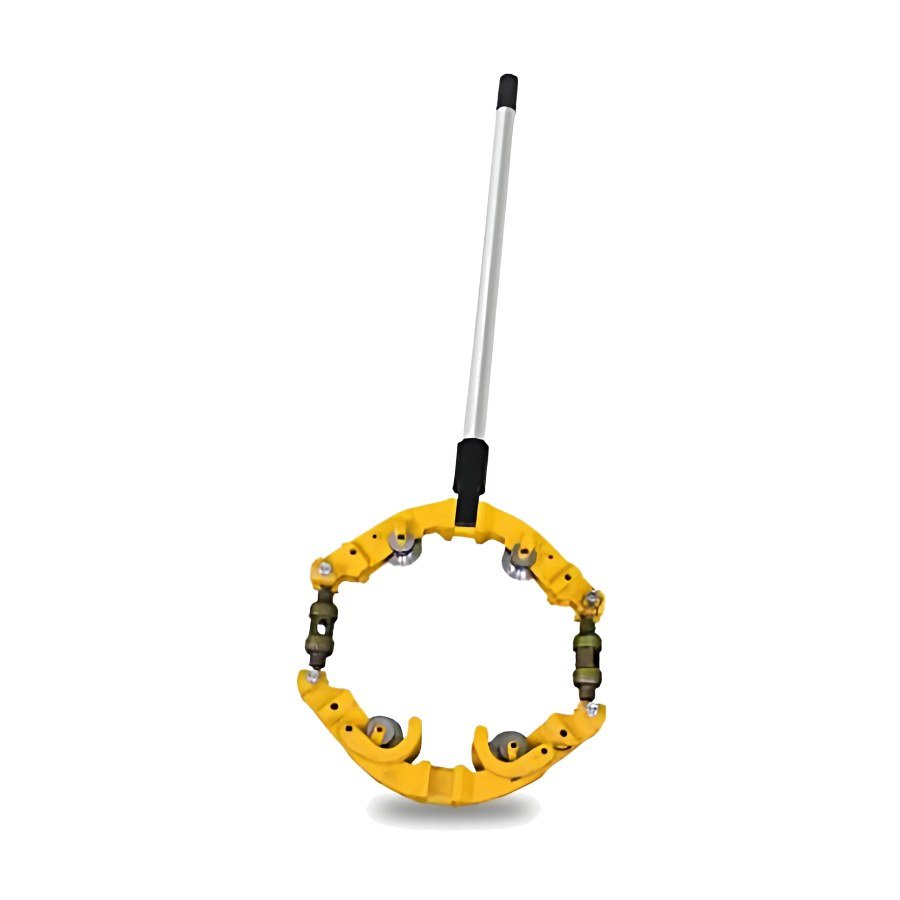

H12S
219 – 325 mm
—
—
US$ 924

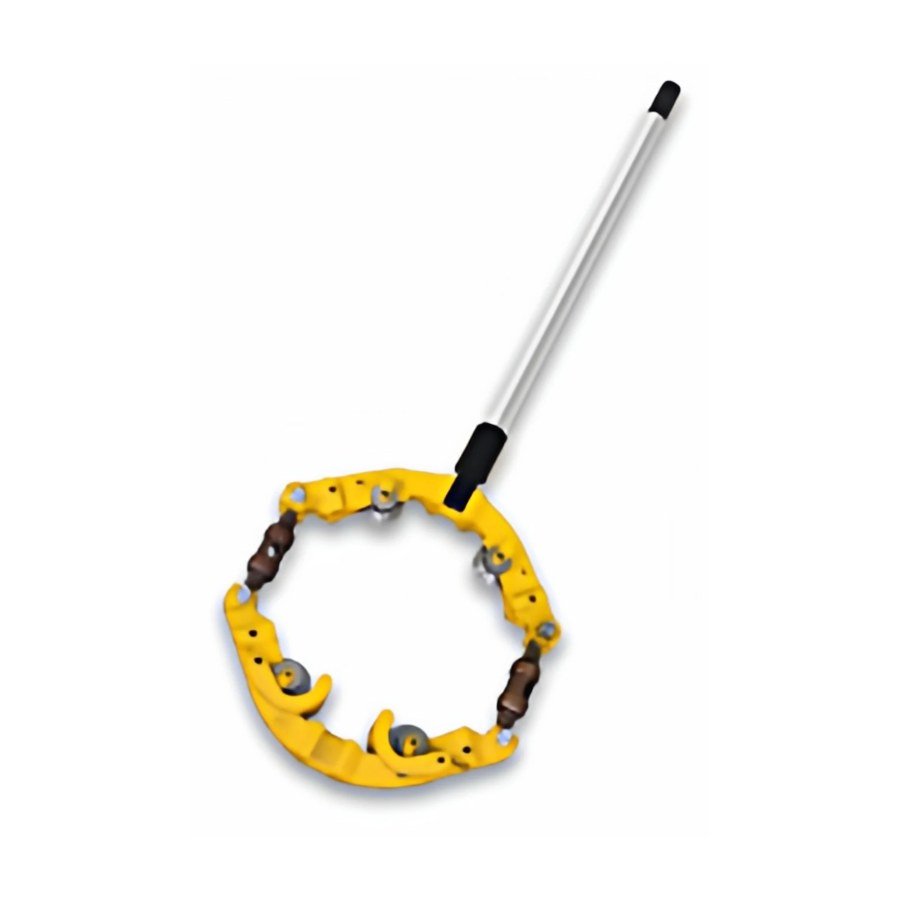

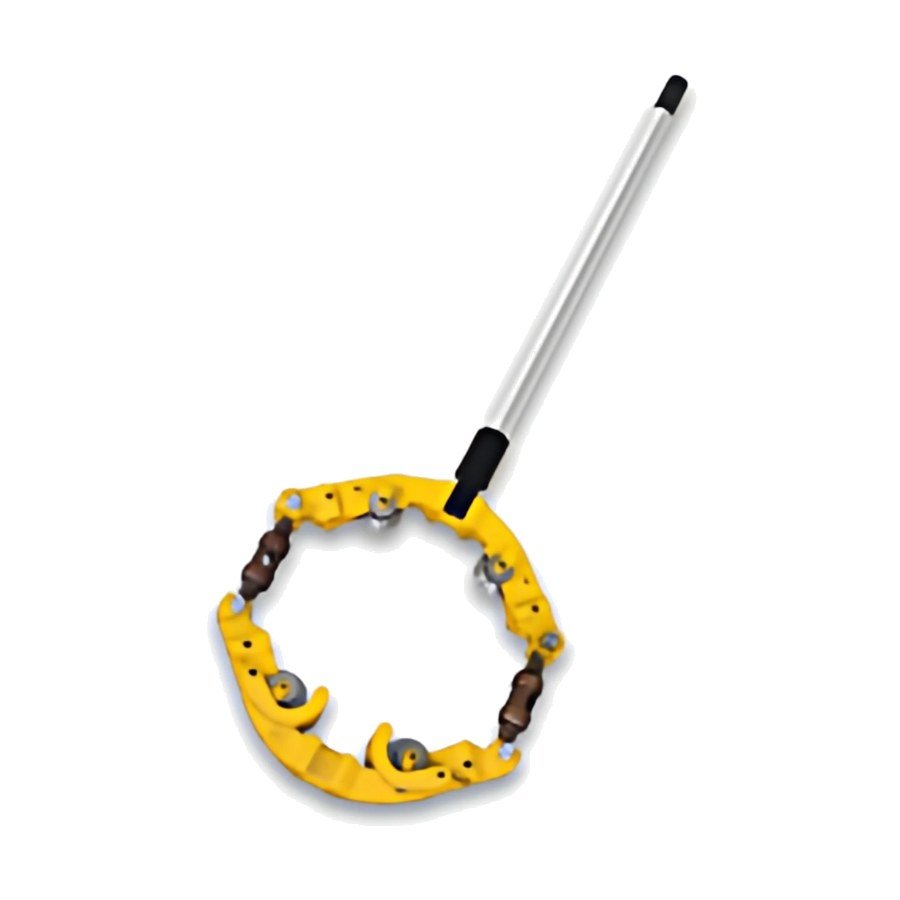

H14S
250 – 377 mm
10″ – 14″
15 mm (13 mm at 10″)
US$ 1,476

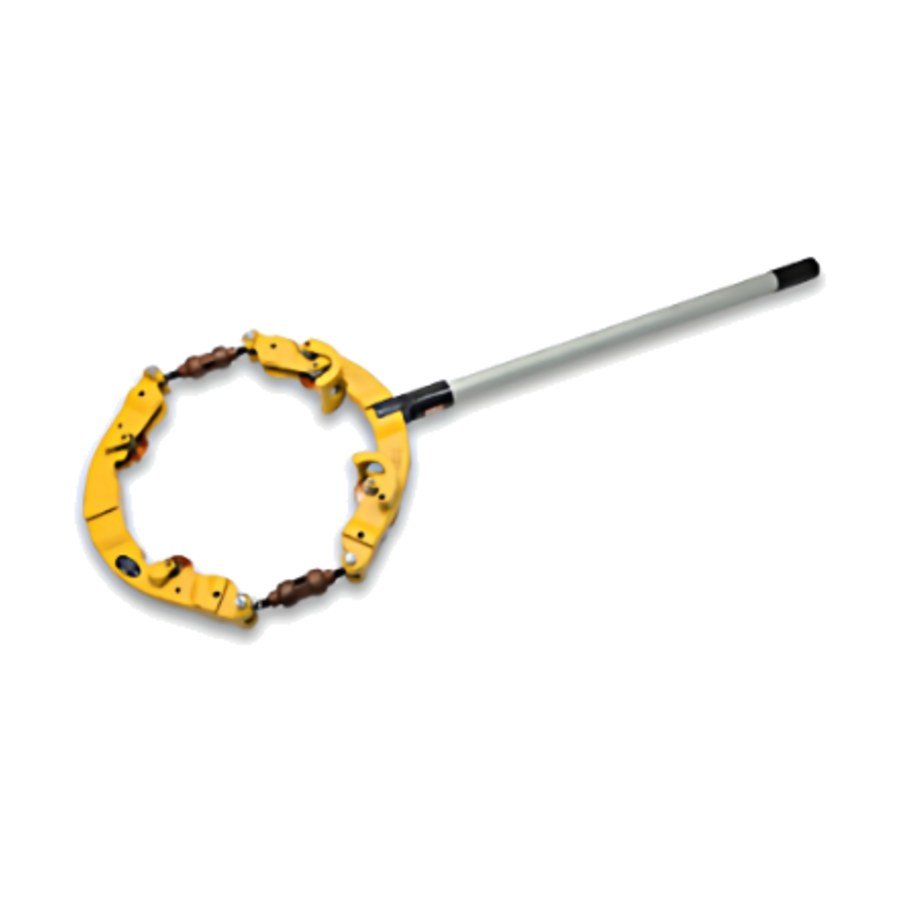

H18S
356 – 457 mm
14″ – 18″
15 mm (8 mm at 14″)
US$ 2,736

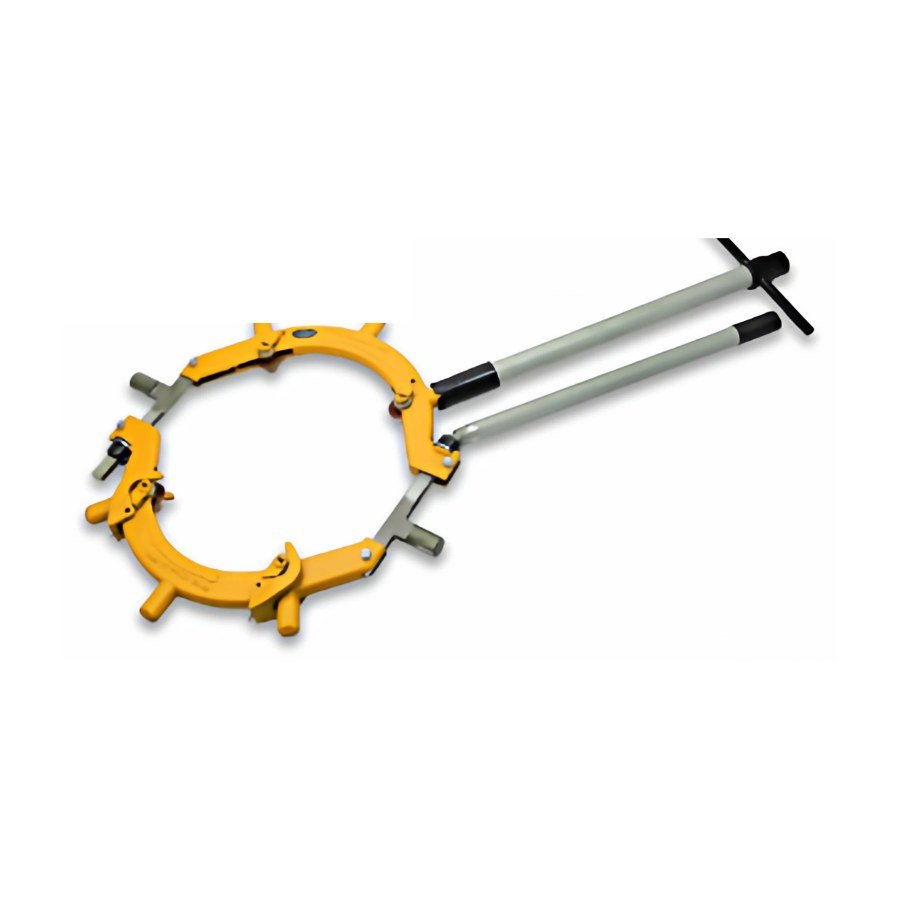

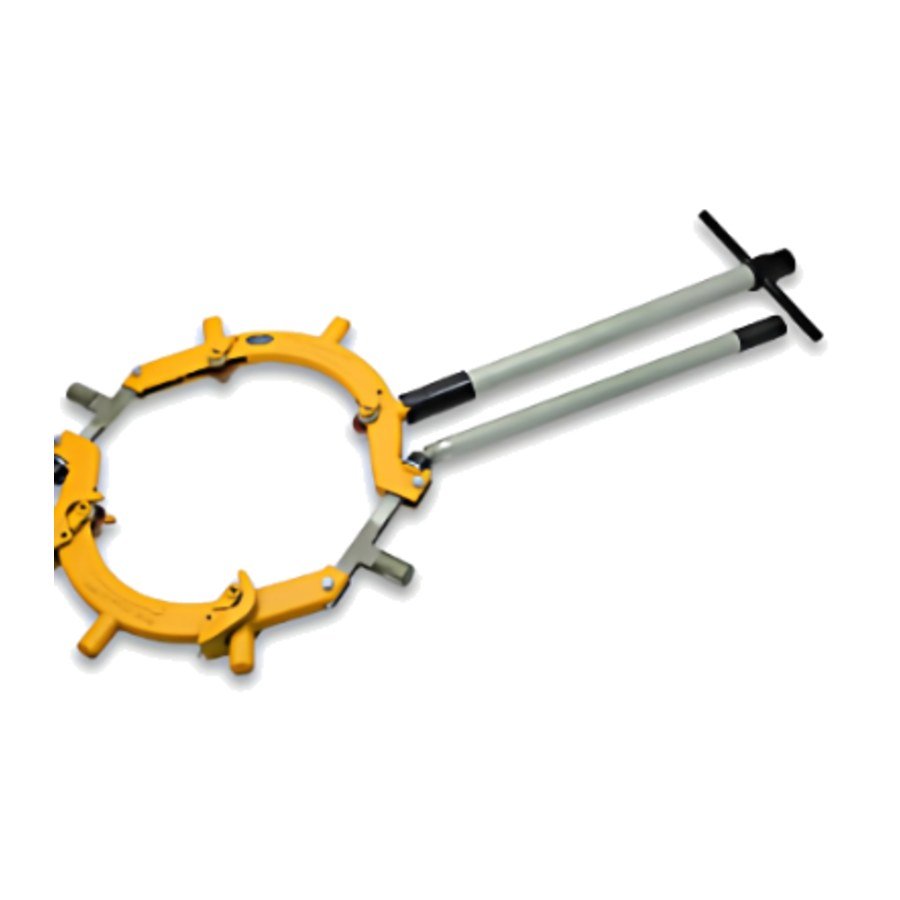

H22S
457 – 559 mm
18″ – 22″
15 mm
US$ 3,485

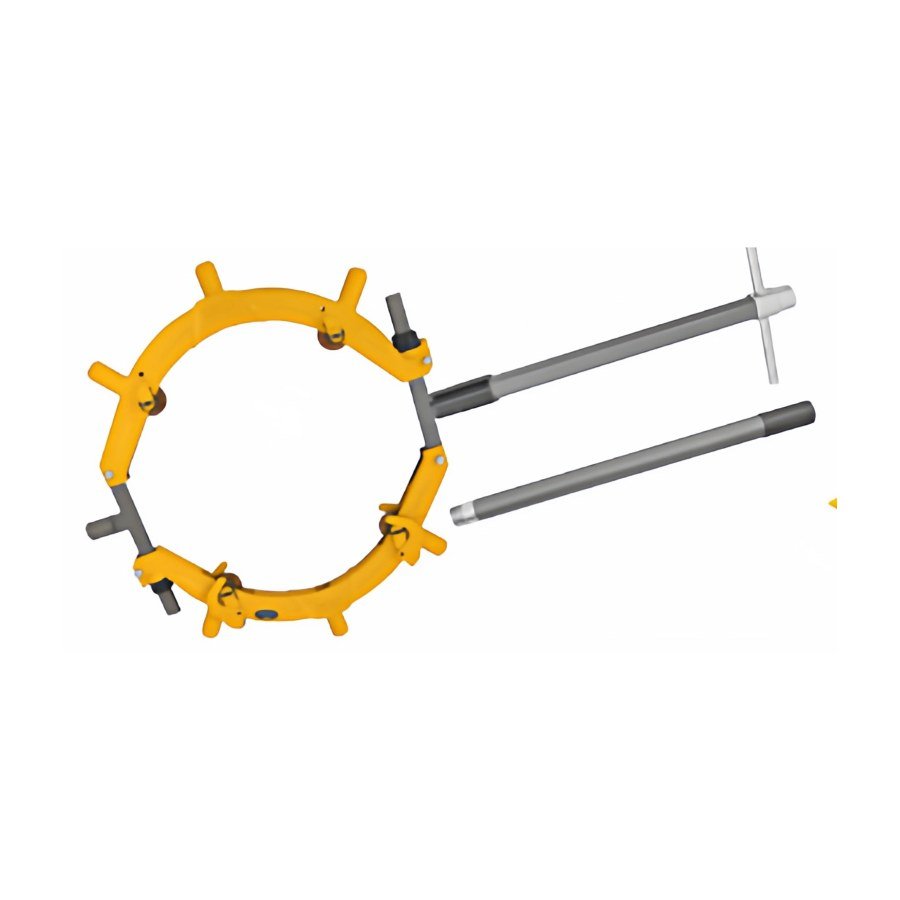

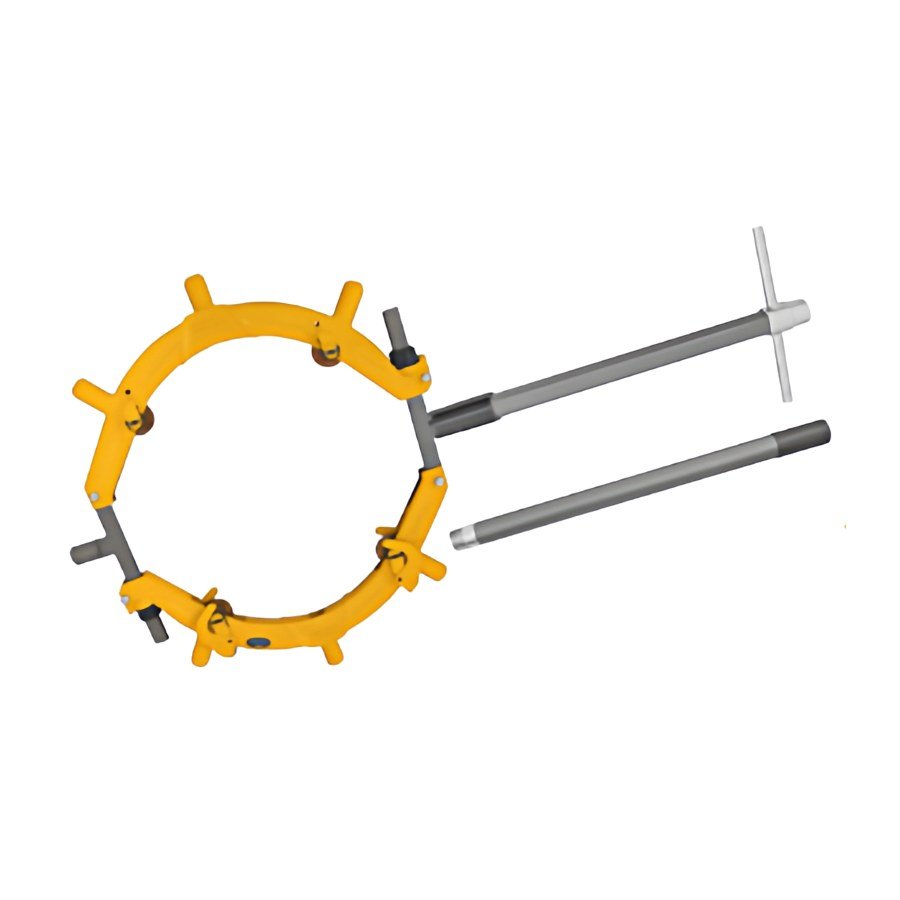

H24S
559 – 660 mm
22″ – 26″
15.88 mm
US$ 5,021

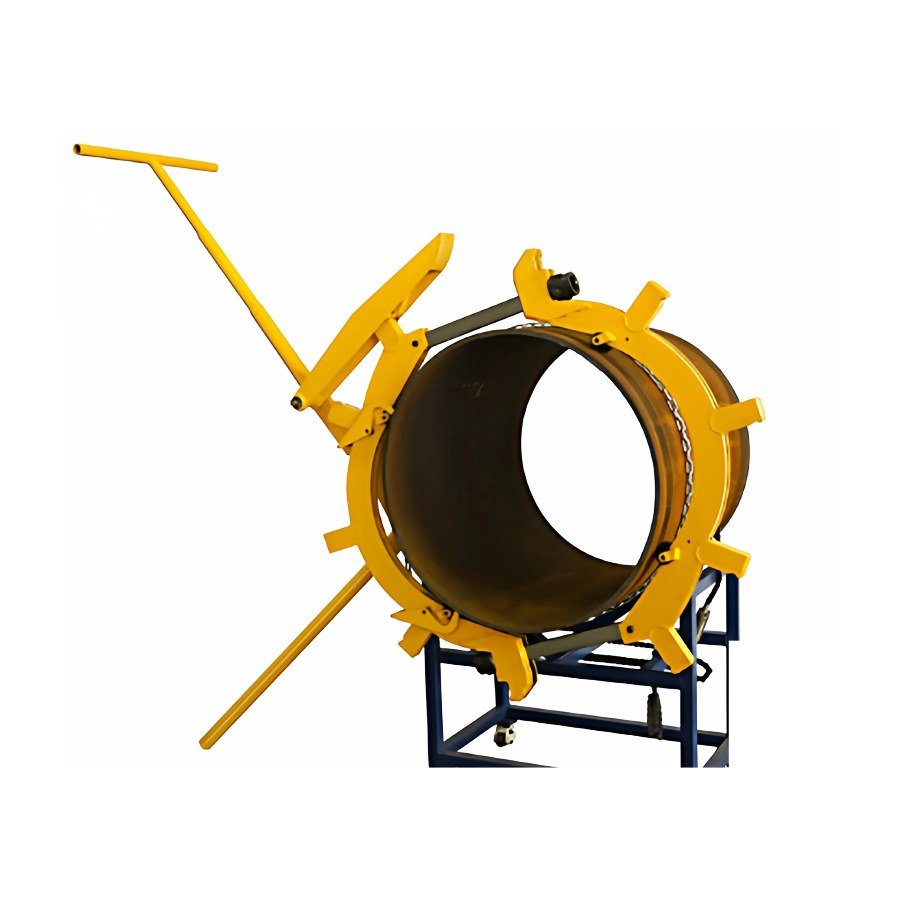

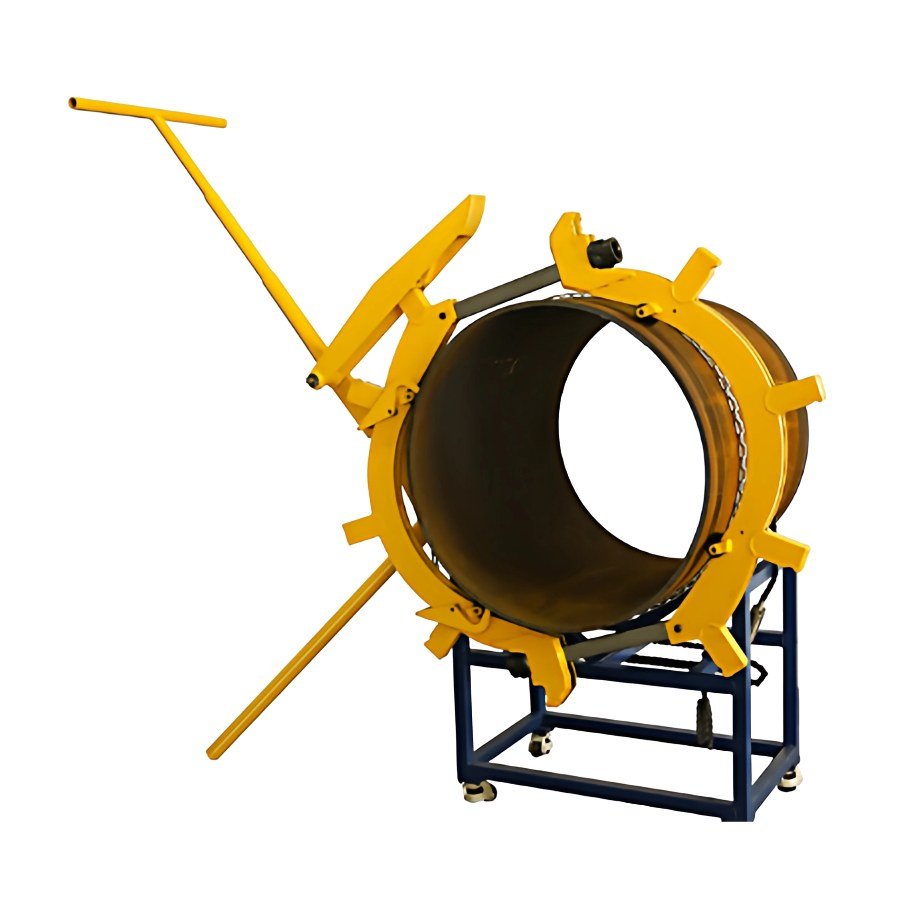

H30S
698 – 864 mm
28″ – 34″
15.88 mm
US$ 8,173

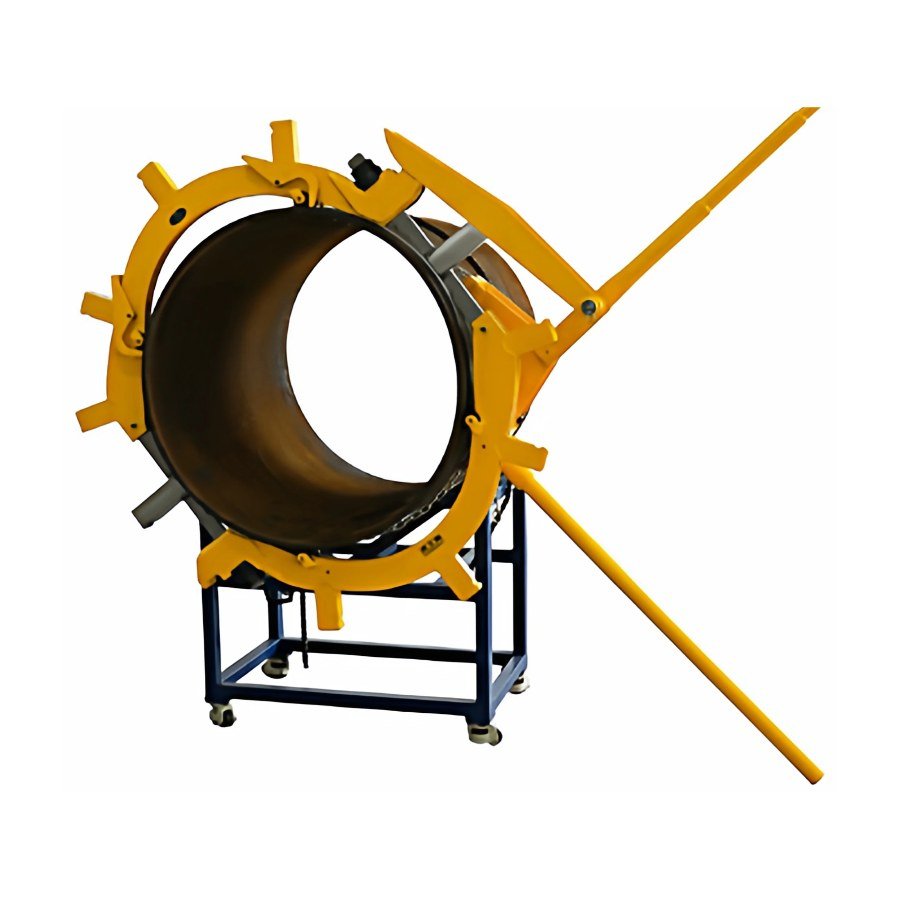

H36S
813 – 915 mm
32″ – 36″
15.88 mm
US$ 8,803
Prices are per unit in US dollars, ex-works Yiwu, and hold for single-unit orders — ask us for the quantity price. Technical values are the manufacturer figures for the standard wheel set; cutting cast iron or heavy-wall steel needs the optional wheels, so tell us the pipe and we will specify them with the tool. A dash means the figure is confirmed per order.
What ships with the tool

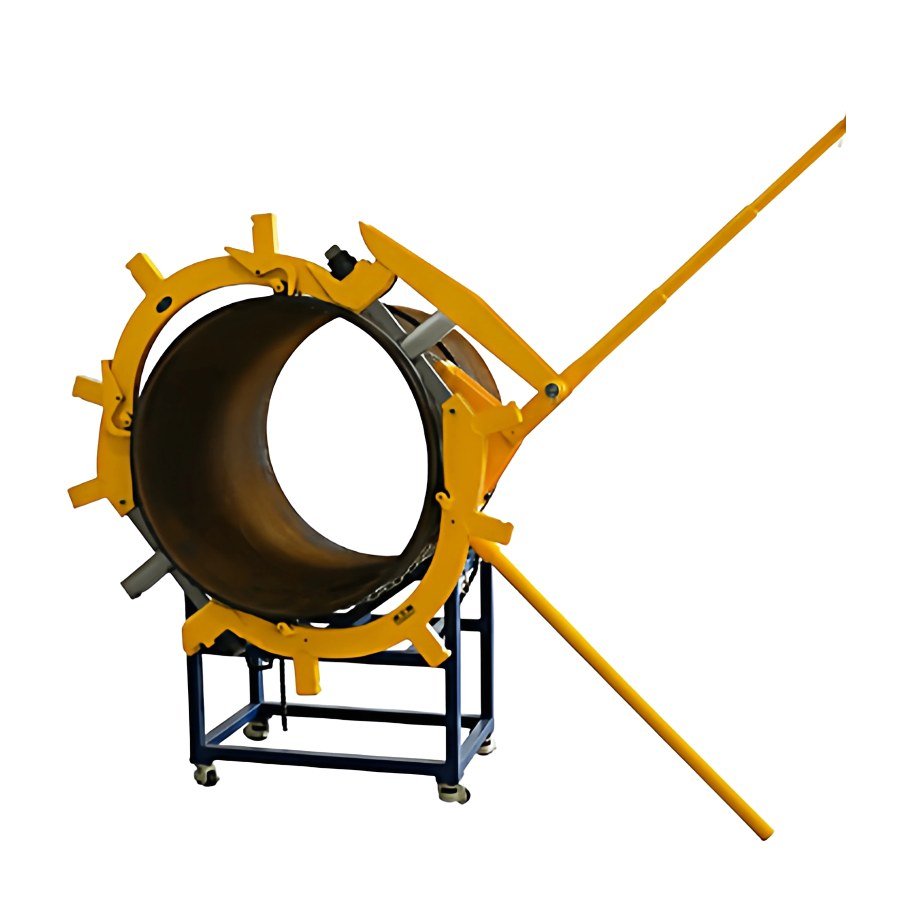

Every cutter arrives complete and ready to work: the frame with its chain fitted, a full set of four cutting wheels, and the drive handle. From H22S upward the tool uses twin drive handles for the extra leverage large pipe needs, and the H30S and H36S ship with a wheeled support stand so the head can be rolled to the pipe and held square while cutting.
Tell us the pipe, we will tell you the model
Send the outside diameter and wall thickness of the pipe you cut most. We will confirm the right size, the wheel set for your material, the quantity price and the delivered cost to your port.
Shipped from Yiwu, China. Spare cutting wheels and chains are stocked for every model, so a tool bought today can be kept running for years. Prices are ex-works and exclude freight, insurance and duties; sea or air freight is quoted separately to your port.
